44db High Power Gain L-Band 2000MHz Tdd Lte Minimization 5w Amplifier For Mesh Network Ad-Hoc
Product Description:
LTE Power Amplifier

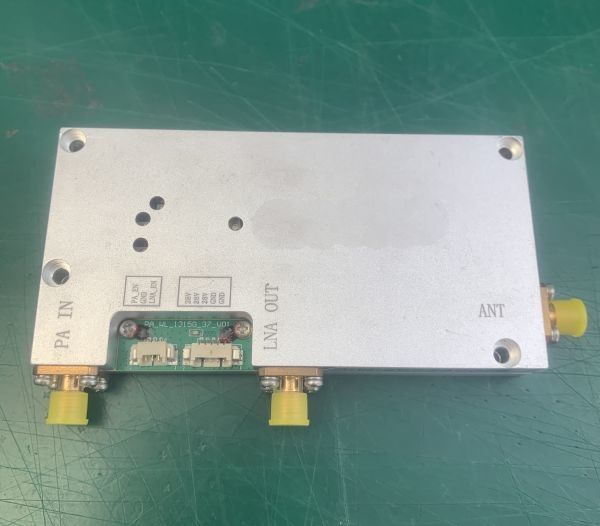

This is LTE Power Amplifier, a high-power amplifier designed for COFDM signal. It is housed in a robust aluminium case with dimensions of 100*50*14mm and is equipped with a 28V power supply. It offers frequency range from 2040MHz to 2080MHz and can handle input power from -10dBm to 0dBm. It also supports a wide temperature range from -20℃ to +65℃. With its high power and wide frequency range, this amplifier offers excellent performance for LTE applications.
Features:
- Product Name: LTE Power Amplifier
- Minimization Size: 100*50*14mm
- Bi-Directional Power Amplifier for High Power Video Link
- Output Power: >37dBm
- Gain: >44dB
- Input/Output VSWR: <1.8
- Efficiency: >10%
Technical Parameters:
| Item |
Specification |
| Frequency Range |
2040-2080MHz(or Customized ) |
| Output Power |
37dBm |
| Tx Gain |
44 ± 1 (dB) |
| Rx Gain |
10 ± 1 (dB) |
| Gain Flatness |
2.0 (dB) Peak To Peak Over Freq Band |
| EVM |
≤3.5% |
| Noise Figure |
≤3.0(dB) |
| In/Out VSWR |
Less Than 1.8:1 |
| DC Current |
1.8 (A) |
| Size(DxWxH) |
100*50*14 (mm) |
| In/Out Commector |
MCX |
| Time Delay |
≤2(us) |
| Operation Temp. |
-20 ~ +65 (°C) |
| I/O Map |
Power Supply Socket 1x5Pin 1.25mm
Pin 1,2,3:28V
Pin 4,5:GND
Control Interface Socket 1x3Pin 1.25mm
Pin 1:PA_EN
Pin 2:GND
Pin 3:LNA_EN
|
| Supply Voltage |
28V |
| Work Mode |
TDD OFDM Signal |
Applications:
MXT's LTE Power Amplifier is a bi-directional, high linearity, and efficiency amplifier that has been designed to provide a maximum gain of >44dB with a power supply of 28V, input power of -10dBm~ 0dBm, and a noise figure of <3dB. This amplifier is made in China and comes in a compact size of 100*55*14mm. It is widely used in different applications for providing wireless signal expansion in various scenarios such as cellular base stations, LTE access points, and LTE backhaul systems.
This amplifier is equipped with Bi-Directional technology for enabling efficient and reliable signal transmission in both directions. Its high linearity ensures that the transmitted signal remains unchanged, thus delivering excellent signal reception. Its high efficiency allows it to achieve maximum power output with minimum power consumption, making it an ideal choice for applications that require long-term operation.
MXT's LTE Power Amplifier is an ideal solution for providing wireless signal expansion in a variety of applications. It offers excellent performance, high linearity, and high efficiency, making it an ideal choice for applications such as cellular base stations, LTE access points, and LTE backhaul systems.
Customization:
MXT LTE Power Amplifier is the perfect choice for high power, high linear and high efficiency applications. With a brand name of MXT, this power amplifier is made in China and supplied with 28V. It is also designed with a Minimization size of 100*55*14mm, a frequency range of 2040MHz-2080MHz, gain of >44dB and input power of -10dBm~ 0dBm.
MXT LTE Power Amplifier offers a great combination of high power, high linear and high efficiency. It is the perfect product to meet your needs in terms of size, frequency range, gain and input power. Its high power, high linear and high efficiency features make it a must-have product in your setup.
Support and Services:
RF Power Amplifier Technical Support & Services
We offer technical support and services for our RF Power Amplifier products to ensure that they are functioning properly and providing the best possible performance.
Installation & Setup
We are available to provide assistance with the installation and setup of your RF Power Amplifier. Our team of experienced engineers can guide you through the process and answer any questions you have.
Troubleshooting
If you are experiencing any issues with your RF Power Amplifier, our team of experts can help identify the source of the problem and provide you with solutions to resolve it quickly.
FAQ:
-
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4. Delivery & Shipment Date:
5-30 days
Q5. Customized Frequency:
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
Q6. Output Power & Coverage Areas on Mobile Signal Repeater:
20dBm: 500-1500m²
23dBm: 1500-2500m²
25dBm: 2500-4000m²
27dBm: 3000-5000m²
30dBm: 5000-8000m²
Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
