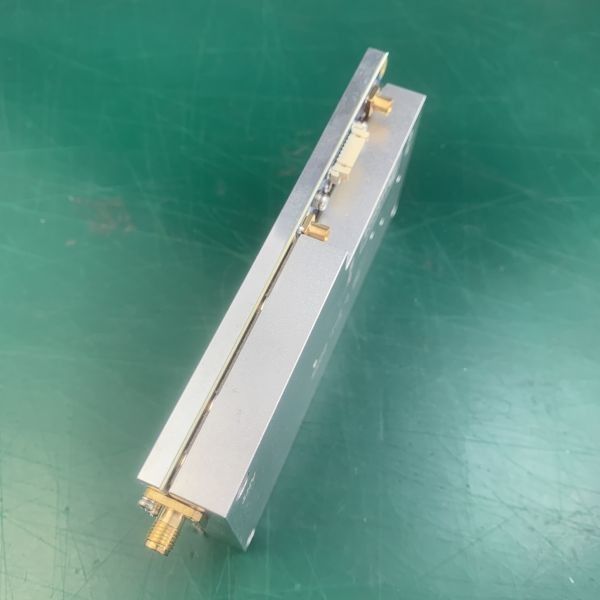

Stable Network LTE Signal Amplifier , Multipurpose HF Power Amp
  • Stable Network LTE Signal Amplifier , Multipurpose HF Power Amp
  • Stable Network LTE Signal Amplifier , Multipurpose HF Power Amp

Stable Network LTE Signal Amplifier , Multipurpose HF Power Amp

Place of Origin China
Brand Name MXT
Model Number TDD1300T1500M 5W-28V
Product Details
Input Power:
-10dBm~ 0dBm
Size:
125*65*18mm
Input/Output VSWR:
<1.8
Gain:
≥44dB
Frequency Range:
1300MHz-1500MHz
Output Power:
≥37dBm
Power Supply:
28V
Noise Figure:
<3dB
High Light:

Stable LTE Signal Amplifier

,

Network LTE Signal Amplifier

,

Multipurpose HF Power Amp

Payment & Shipping Terms
Minimum Order Quantity
2
Price
Negotiable
Delivery Time
30 Work Days
Payment Terms
L/C, T/T
Supply Ability
500Sets 30 Days
Product Description

High Efficiency Aluminium Enclosure For -20~+65℃ Temperature Range Data Transmission MESH Network

Product Description:

LTE Power Amplifier

This LTE Power Amplifier is a high-performance, cost-effective, lightweight solution for TD LTE and FDD LTE applications. It is designed to provide up to 37 dBm of output power with a gain of >44 dB and an efficiency of >10%. It is housed in an aluminium case and measures 125*65*18mm, and has an input/output VSWR of <1.8. This reliable solution is ideal for video links and other demanding applications.



Features:

  • Product Name: LTE Power Amplifier
  • Temperature Range: -20~+65℃, wide temperature range
  • Output Power: >37dBm
  • Frequency Range: 1300MHz-1500MHz
  • Input Power: -10dBm~ 0dBm
  • OFDM signal, TD LTE, video link signal compatible


Technical Parameters:

Item Specification
Frequency Range 1300-1500MHz
Output Power 37dBm
Tx Gain 44 ± 1 (dB)
Rx Gain 10 ± 1 (dB)
Gain Flatness 2.0 (dB) Peak To Peak Over Freq Band
Gain Stability ± 1.5 (dB) Over Temp
In/Out VSWR Less Than 1.5:1
DC Current 2 (A)
Size(DxWxH) 125x65x18(mm)
In/Out Commector MCX/SMA
Time Delay ≤2(us)
Operation Temp. -20 ~ +65 (°C)
I/O Map
Socket1x10Pin 1.25mm
Pin 1:LNA_EN
Pin 2:PA_EN
Pin 3,4,5:GND
Pin 6,7,8,9,10:28V
Supply Voltage 28V
Work Mode TDD OFDM Signal



Applications:

MXT is a high-end LTE Power Amplifier, which is designed to provide high power, efficient data transmission and low power consumption. It is manufactured in China and is powered by 28V. Its high efficiency is up to 10%, and its gain is >44dB. The Input/Output VSWR is <1.8, and the Noise Figure is <3dB. The amplifier is an ideal solution for high-end data transmission applications that require high power and excellent signal integrity. It is also an excellent choice for mobile communication, microwave radio and satellite communication.



Customization:

MXT LTE Power Amplifier: TD LTE, Aluminium Case, High Power

Brand Name: MXT
Place of Origin: China
Frequency Range: 1300MHz-1500MHz
Output Power: >37dBm
Efficiency: >10%
Gain: >44dB
Input/Output VSWR: <1.8

MXT LTE Power Amplifier is designed for TD LTE applications with an aluminium case, providing high power output. It offers a frequency range of 1300MHz-1500MHz, with an output power of >37dBm, gain of >44dB, and efficiency of >10%. The Input/Output VSWR of MXT LTE Power Amplifier is <1.8.



Support and Services:

We provide technical support and services for our LTE Power Amplifier product. Our team of experienced engineers are available to answer any questions you may have and provide advice on the best solution for your application. We offer a comprehensive range of customization options, from simple tweaks to complex modifications, to ensure you get the perfect product for your needs.

We also provide a variety of service options, including installation, maintenance, troubleshooting, and upgrades. Our team is always available to provide timely and professional assistance, so you can be sure your LTE Power Amplifier is always working at its best.
