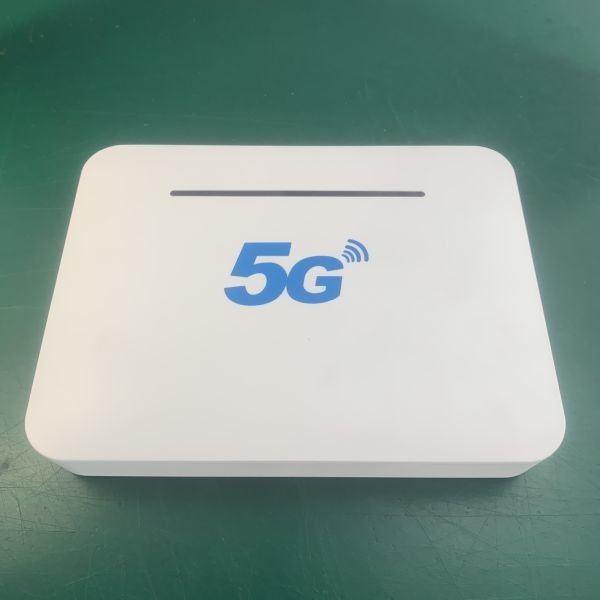

Mobile signal repeater 4G LTE 5G NR Two Bands
Product Description:
The 4G/5G NR mobile signal amplifier is a device that boosts the strength and coverage of cellular signals for compatible devices. It works by amplifying the existing signal and rebroadcasting it to improve the quality and reliability of the connection. This can be especially useful in areas with weak or spotty signal coverage. The product description will typically include information on the compatible frequency bands, coverage area, and any additional features such as signal strength indicators or installation instructions.
Features:
- Frequency Range: band 1:1805~1830MHz； band 2:2515~2675MHz
- Gain: 65dB
- Operating Temperature: -10°C To +55°C
Technical Parameters:
| Item |
Specification |
| Frequency Range |
Band1 :1805~1830MHz
Band2:2515~2675MHz |
| Output Power |
20 ± 2 dBm |
| ALC range |
≥30 dB |
| Gain |
65±3 dB |
| In-band fluctuation(p-p) |
≤5 dB |
| Time Delay |
≤1.0 μs |
| Noise Figure |
≤5.0 dB |
| VSWR |
Less Than 2.0 |
| Out-band spurious |
9kHz～1GHz ≤-36dBm
1GHz～12.75GHz ≤-30dBm
|
| Intermodulation attenuation |
≤-36dBc/30KHz |
| Size(DxWxH) |
210x160x35 mm |
| In/Out Commector |
SMA |
| Operation Temp. |
-10 ~ +55 (°C) |
| Supply Voltage |
12V |
| Work Mode |
TDD |
Applications:
A 4G/5G NR mobile signal amplifier can be useful in a variety of situations where weak or inconsistent cellular signal is an issue. Some common scenarios where a signal amplifier might be helpful include:
1. Rural areas with limited cell tower coverage
2. Large buildings or structures with thick walls that block signals
3. Basement or underground locations where signals struggle to penetrate
4. Remote work sites or outdoor locations where signals may be weak or non-existent
5. Areas with high levels of electromagnetic interference that disrupt signals
In all of these scenarios, a signal amplifier can help improve the quality and reliability of cellular connections for compatible devices.
Customization:
Customized Mobile Signal Repeater Service
We provide customized Mobile Signal Repeater Service according to your requirements. The Minimum Order Quantity is 2 sets. The price is negotiable.
Support and Services:
Mobile Signal Repeater Technical Support & Services
We offer technical support and services for our Mobile Signal Repeater products to ensure that they are functioning properly and providing the best possible performance.
Installation & Setup
We are available to provide assistance with the installation and setup of your Mobile Signal Repeater. Our team of experienced engineers can guide you through the process and answer any questions you have.
Troubleshooting
If you are experiencing any issues with your Mobile Signal Repeater, our team of experts can help identify the source of the problem and provide you with solutions to resolve it quickly.
Fast Q&A
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4. Delivery & Shipment Date:
5-30 days
Q5. Customized Frequency:
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
Q6. Output Power & Coverage Areas on Mobile Signal Repeater:
20dBm: 500-1500m²
23dBm: 1500-2500m²
25dBm: 2500-4000m²
27dBm: 3000-5000m²
30dBm: 5000-8000m²
Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
