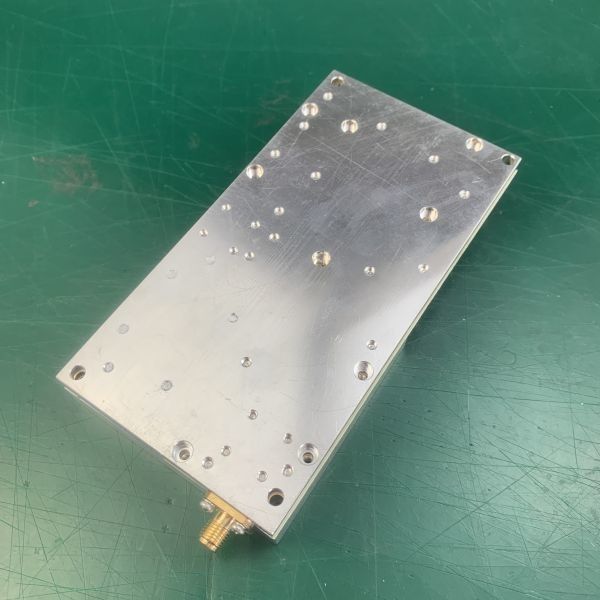

125mmx65mm LTE Power Amplifier Stable High Performance 1300MHz-1500MHz
  • 125mmx65mm LTE Power Amplifier Stable High Performance 1300MHz-1500MHz
  • 125mmx65mm LTE Power Amplifier Stable High Performance 1300MHz-1500MHz
  • 125mmx65mm LTE Power Amplifier Stable High Performance 1300MHz-1500MHz

125mmx65mm LTE Power Amplifier Stable High Performance 1300MHz-1500MHz

Place of Origin China
Brand Name MXT
Model Number TDD1300T1500M 20W-28V
Product Details
Size:
125*65 Mm
Gain:
>40dB
Efficiency:
>15%
Noise Figure:
<3dB
Frequency Range:
1300MHz-1500MHz
Input/Output VSWR:
<1.8
Temperature Range:
-20~+65℃
Output Power:
>43dBm
High Light:

125mm LTE Power Amplifier

,

65mm LTE Power Amplifier

,

Stable High Power Amplifier RF

Payment & Shipping Terms
Minimum Order Quantity
2
Price
Negotiable
Delivery Time
30 Work Days
Payment Terms
L/C, T/T
Supply Ability
100Sets 30 Days
Product Description

LTE Power Amplifier 43dBm Output Temperature Range -20~+65℃ Size125*65mm

Product Description:

Our LTE Power Amplifier is designed to provide high power, low noise and wide frequency coverage with excellent linearity. It is ideal for base station applications in the 1300MHz - 1500MHz frequency range. It features a low noise figure of <3dB and a gain of >40dB. The power amplifier is temperature-stable and operates within a temperature range of -20~+65°C. With an ACPR 36dB, it is powered by a 28V supply voltage.

The LTE Power Amplifier offers superior performance with excellent linearity and high power, and provides a high ACPR of 36dB. It also provides a wide frequency range and operates within a temperature range of -20~+65°C. The design is robust and reliable, offering low noise figure of <3dB and gain of >40dB. Its 28V power supply ensures a stable operation.

Our LTE Power Amplifier is designed to provide exceptional performance and reliability in base station applications. With its wide frequency coverage, low noise figure, high gain, superior linearity and high ACPR, it is ideal for applications where high power is required. The temperature-stable design ensures reliable operation within the -20~+65°C temperature range, while the 28V power supply ensures a stable operation.



Features:

  • Product Name: LTE Power Amplifier
  • Input Power: -10dBm~ 0dBm
  • Power Supply: 28V
  • Input/Output VSWR: <1.8
  • Gain: >40dB
  • Size: 125*65*18mm
  • High Linear: ACPR 36dB


Technical Parameters:

Item Specification
Frequency Range 1300-1500MHz
Output Power 43dBm
Tx Gain 49 ± 1 (dB)
Rx Gain 10 ± 1 (dB)
Gain Flatness 2.0 (dB) Peak To Peak Over Freq Band
Gain Stability ± 1.5 (dB) Over Temp
In/Out VSWR Less Than 1.5:1
DC Current 5 (A)
Size(DxWxH) 125x65x18(mm)
In/Out Commector MCX/SMA
Time Delay ≤2(us)
Operation Temp. -20 ~ +65 (°C)
I/O Map
Socket1x10Pin 1.25mm
Pin 1:LNA_EN
Pin 2:PA_EN
Pin 3,4,5:GND
Pin 6,7,8,9,10:28V
Supply Voltage 28V
Work Mode TDD OFDM Signal





Applications:

MXT's LTE Power Amplifier is a perfect choice for a wide range of applications and scenarios. With its features such as high gain, bi-directional operation, and aluminum case, this power amplifier is well-suited for video link, base station, and other services. It supports a wide frequency range of 1300MHz-1500MHz, and has a temperature range of -20℃ to 65℃. It also has a wide input power range of -10dBm to 0dBm and a low noise figure of 3dB.

This power amplifier is highly reliable and robust, and it is designed to withstand harsh environmental conditions. It is also highly efficient, and helps to reduce power consumption. Additionally, it has a small size of 125*65*18mm, which makes it easy to install.

MXT's LTE Power Amplifier is the perfect choice for those looking for a reliable and efficient power amplifier. With its advanced features and robust design, it is sure to provide you with a reliable and efficient performance.



Customization:

Customized MXT LTE Power Amplifier
  • We provide customized LTE Power Amplifier Service according to your requirements. Our Model Number is TDD1300T1500M 20W-28V. which is made in China. The Minimum Order Quantity is 2. The price is negotiable.


Support and Services:

We provide technical support and service for our LTE Power Amplifiers. Our support team is available to answer any questions you may have about our product. We can assist you with troubleshooting, installation, and maintenance of your LTE Power Amplifier. Our team of experts can provide you with personalized advice, guidance, and support for all your needs. We also offer free software updates and upgrades to ensure your device is always running at its best. We strive to provide the best possible experience for our customers, and are committed to delivering exceptional customer service.
