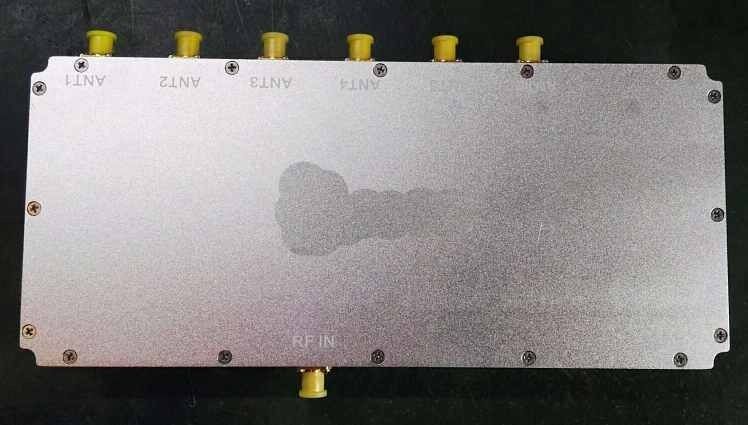

High-Performance Signal Strength/Status/WPS WIFI with External Antennas 2400M to 2483MHz Power Divider 6 way Module
Product Description:
WiFi Wlan Booster
WiFi Wlan Booster is a powerful, easy-to-use wireless AP booster that can extend wireless coverage and eliminate dead spots. It is designed to work with 802.11g and 802.11n networks and is compatible with WEP/WPA-PSK/WPA2-PSK encryption. It offers dual-band frequency of 2.4GHz and has a light weight of 200g. It has a wide operating temperature range of 20℃~55℃, making it ideal for indoor applications. It is also suitable for a variety of applications, such as WLAN Booster, AP Booster, and more.
Features:
- Product Name: WiFi Wlan Booster
- Type: Wireless Booster (5.8g Router Booster, AP Booster, Wi-Fi Booster)
- Operating Temperature: 20℃~55℃
- Frequency: 2.4GHz
- LED Indicator: Signal Strength/Status/WPS
Technical Parameters:
| Item |
Specification |
| Frequency Range |
2400~2483MHz |
| Supported standards |
IEEE 802.11b/g/n |
| Output Power |
≥15dBm@65Mbps EVM<-28dB |
| Input power |
3 ~ -7(dBm) |
| Tx Gain |
17±2(dB) |
| Rx Gain |
12±2 dB |
| Gain Flatness |
≤3.0 dB |
| Noise figure |
≤3.5dB Typical |
| DC Current |
≤0.6A@48VDC |
| Size(DxWxH) |
200*120*25(mm) |
| In/Out Commector |
SMA Female |
| Operation mode |
Bi-directional, half-duplex, time division duplex |
| Operation Temp. |
-20 ~ +55 (°C) |
| LED light |
Power status LED and activity status LED |
| Supply Voltage |
48V PoE |
| Weight |
200g |
Applications:
MXT WiFi Wlan Booster is a high-quality product designed to provide wireless network coverage to large areas. It features a powerful 2.4GHz and 5GHz dual-band frequency, advanced 802.11g and 802.11AC protocols, and a high transmission rate up to 150Mbps. With its LED indicator, you can easily check the signal strength, status,. Moreover, it is powered by a PoE 48V/0.5A power supply, making it a reliable and energy-efficient device.
This WiFi Wlan Booster is ideal for home and office environments, providing a reliable and secure connection that can cover vast areas. It is perfect for conference halls, classrooms, and other venues that require a large wireless network coverage. With its easy-to-use installation, you can set up a wireless network in a matter of minutes.
In addition, this WiFi Wlan Booster is a great device for business and commercial purposes. It is perfect for large-scale network coverage in hotels, restaurants, malls, and other establishments. With its reliable and secure connection, it can provide a stable wireless network for your customers and employees. Moreover, its energy-efficient design helps you save costs and reduce your electricity bill.
MXT WiFi Wlan Booster is your ideal solution for large-scale wireless network coverage. Its powerful frequency, advanced 802.11g and 802.11AC protocols, and high transmission rate make it a reliable and secure connection. With its LED indicator, WEP, WPA-PSK, and WPA2-PSK encryption, and energy-efficient design, it is the perfect device for home, office, commercial, and outdoor use. Get your MXT WiFi Wlan Booster today!
Customization:
MXT WiFi Wlan Booster
- Brand Name: according request
- Place of Origin: China
- Encryption: support WEP/WPA-PSK/WPA2-PSK
- Product Name: WiFi Wlan Booster
- Frequency: 2.4GHz
- Antenna: 6 X External Antennas
- Operating Temperature: 20℃~55℃
- Boost your WiFi signal with MXT Wlan Booster, supporting 2.4GHz frequencies.
Support and Services:
WiFi Wlan Booster provides technical support and services for our customers. We are committed to answering any questions related to our product and providing help with installation and trouble-shooting. Our technical support team is available seven days a week and can be reached via email, telephone, or live chat.
In the event that your WiFi Wlan Booster needs to be repaired or replaced, our customer service team is here to help. We offer a one-year warranty on all our products and will provide a replacement or a refund if a product fails to meet our stated specifications.
