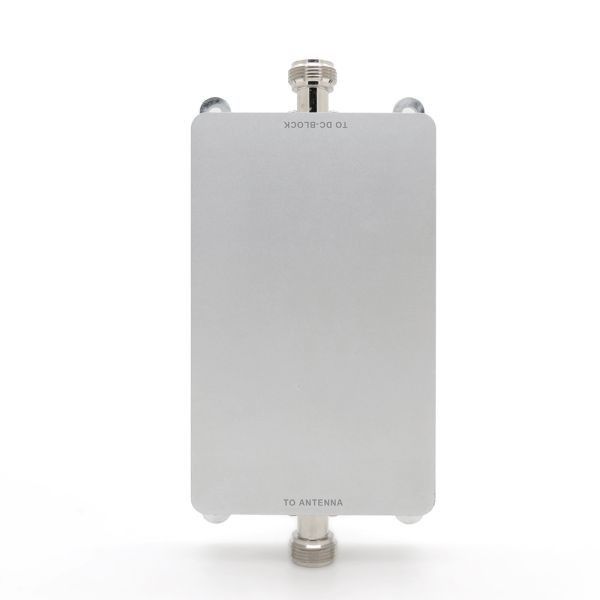

2W Indoor WiFi Wlan Booster , N Connector WiFi Signal Repeater
  • 2W Indoor WiFi Wlan Booster , N Connector WiFi Signal Repeater
  • 2W Indoor WiFi Wlan Booster , N Connector WiFi Signal Repeater
  • 2W Indoor WiFi Wlan Booster , N Connector WiFi Signal Repeater
  • 2W Indoor WiFi Wlan Booster , N Connector WiFi Signal Repeater

2W Indoor WiFi Wlan Booster , N Connector WiFi Signal Repeater

Place of Origin SHENZHEN,CHINA
Brand Name MXT
Model Number WLAN2400T2483M 2W-12V
Product Details
Case Material:
Aluminium
Color:
Silver
Frequency Rang(MHz):
Customized
Power:
2W
Channel:
1
Work Mode:
TDD Bi-Direction
High Light:

2W WiFi Wlan Booster

,

Indoor WiFi Wlan Booster

,

N Connector WiFi Signal Repeater

Payment & Shipping Terms
Minimum Order Quantity
5
Price
Negotiable
Delivery Time
30 Work Days
Payment Terms
L/C, T/T
Supply Ability
500Sets 30 Days
Product Description

2W Indoor WIFI Signal Repeater SMA Connector



Product Description:





Features:

1.Brand new and high quality.

2. Low-noise receive gain 3.0dB .

3. Led status: mix red with green(transmit) / Green(receive)

4. High Gain, High Value, High Performance.

5. Wide Working Voltage 9-15V.

6. Plug-and-play, Easy installation, no driver needed.

7. Ideal for increase the 2400-2483 MHz frequency devices. Adopt Time Division uplex ( TDD )

8. Increase the effective range and coverage area of your Wi-Fi network.

9.  Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only).



Technical Parameters:

Item Specification
Frequency Range 2400~2483MHz
Supported standards IEEE 802.11b/g/n

Channel width

20Mhz&40Mhz

Output Power 2W
Input power 0 ~ 26 dBm
Tx Gain 23-26 dB
Rx Gain 20 dB
Gain Flatness ≤1dB
Noise figure ≤3.0dB Typical
DC Current ≤2A@12VDC
Size(DxWxH) 195 x165 x 70 mm
In/Out Commector N Female
Operation mode Bi-directional, half-duplex, time division duplex
Operation Temp. -20 ~ +60 (°C)
LED light
Power status LED and activity status LED
Supply Voltage 12V
Weight 200g





Applications:

When it comes to amplifying 2.4g WiFi signals, there are a few things to consider. First and foremost, it's important to understand that a WiFi signal amplifier will only work if there is an existing signal to amplify. If the signal is weak or nonexistent, an amplifier won't be of much help.

Assuming there is a signal to work with, a WiFi signal amplifier can be a useful tool in extending the range and coverage of a wireless network. This can be especially helpful in larger homes or buildings where the signal may not reach all areas.

However, it's important to note that not all WiFi signal amplifiers are created equal. Some may cause interference with other wireless devices or networks, while others may not be compatible with certain routers or devices. It's important to do research and choose a reputable brand that is compatible with your specific setup.

Overall, a 2.4g WiFi signal amplifier can be a useful tool in extending the range and coverage of a wireless network, but it's important to understand its limitations and choose a compatible and reliable product.



Customization:

Customized RF Power Amplifier Service

We provide customized RF Power Amplifier Service according to your requirements. Our Model Number is WLAN2400T2483M 2W-12V. which is made in China. The Minimum Order Quantity is 5. The price is negotiable. This High Power Radio Amplifier works in OFDM Signal mode and has a Supply Current of 2A, and a Supply Voltage of 12V. Our Transmitter Power Amplifier is ideal for High Power Radio Amplifier applications with its high power output, low noise and high linearity performance.



Support and Services:

RF Power Amplifier Technical Support & Services

We offer technical support and services for our RF Power Amplifier products to ensure that they are functioning properly and providing the best possible performance.



Installation & Setup

We are available to provide assistance with the installation and setup of your RF Power Amplifier. Our team of experienced engineers can guide you through the process and answer any questions you have.


Troubleshooting

If you are experiencing any issues with your RF Power Amplifier, our team of experts can help identify the source of the problem and provide you with solutions to resolve it quickly.
