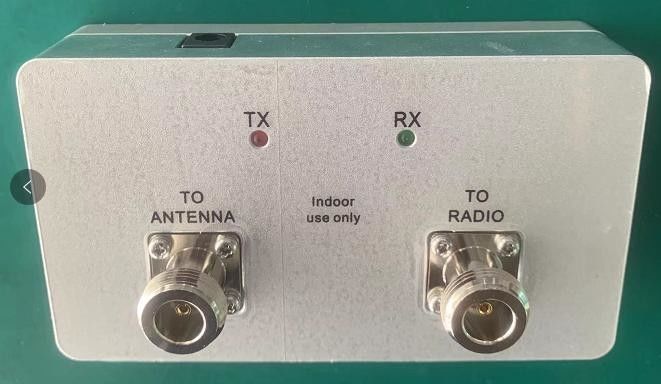

60mW Indoor WiFi booster 2400 2483MHz
Product Description:
2.4GHz WiFi Booster N Connector 60mW 18dBm Power Signal Amplifier Suitable for rail transit equipment
Features:
1.Brand new and high quality.
2. Low-noise receive gain 2.5dB .
3. Led status: mix red with green(transmit) / Green(receive)
4. High Gain, High Value, High Performance.
5. Wide Working Voltage 9-15V.
6. Plug-and-play, Easy installation, no driver needed.
7. Ideal for increase the 2400-2483 MHz frequency devices. Adopt Time Division uplex ( TDD )
8. Increase the effective range and coverage area of your Wi-Fi network.
9. Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only).
Technical Parameters:
| Item |
Specification |
| Frequency Range |
2400~2483MHz |
| Supported standards |
IEEE 802.11b/g/n |
| Output Power |
60mW |
| Input power |
0 ~ 18 dBm |
| Tx Gain |
18 dB |
| Rx Gain |
12 dB |
| Gain Flatness |
≤1dB |
| Noise figure |
≤2.5dB Typical |
| DC Current |
≤0.2A@12VDC |
| Size(DxWxH) |
116 x 65 x 30 mm |
| In/Out Commector |
N Female |
| Operation mode |
Bi-directional, half-duplex, time division duplex |
| Operation Temp. |
-20 ~ +60 (°C) |
| LED light |
Power status LED and activity status LED
|
| Supply Voltage |
12V |
| Weight |
200g |
Applications:
If you're experiencing weak or spotty WiFi signal at home or in the office, using a 2.4GHz WiFi signal amplifier (TDD2400T2483M_18-12V)can help extend the range and improve the strength of your wireless network. A WiFi signal amplifier, also known as a WiFi signal booster or repeater, works by receiving the existing WiFi signal from your router and amplifying it to cover a larger area. This can be useful if you have dead zones or areas with poor reception, such as basements, attics, or far corners of the building. Note that a WiFi signal amplifier cannot increase the speed or bandwidth of your internet connection, but it can make the existing signal more reliable and accessible. When choosing a WiFi signal amplifier, make sure it is compatible with your router and supports the same frequency band (2.4GHz or 5GHz). You may also need to position it strategically and configure it properly to get the best results.
Customization:
Customized RF Power Amplifier Service
We provide customized RF Power Amplifier Service according to your requirements. Our Model Number is TDD2400T2483M_18-12V. which is made in China. The Minimum Order Quantity is 5. The price is negotiable. This High Power Radio Amplifier works in OFDM Signal mode and has a Supply Current of 0.2A, and a Supply Voltage of 12V. Our Transmitter Power Amplifier is ideal for High Power Radio Amplifier applications with its high power output, low noise and high linearity performance.
Support and Services:
RF Power Amplifier Technical Support & Services
We offer technical support and services for our RF Power Amplifier products to ensure that they are functioning properly and providing the best possible performance.
Installation & Setup
We are available to provide assistance with the installation and setup of your RF Power Amplifier. Our team of experienced engineers can guide you through the process and answer any questions you have.
Troubleshooting
If you are experiencing any issues with your RF Power Amplifier, our team of experts can help identify the source of the problem and provide you with solutions to resolve it quickly.
