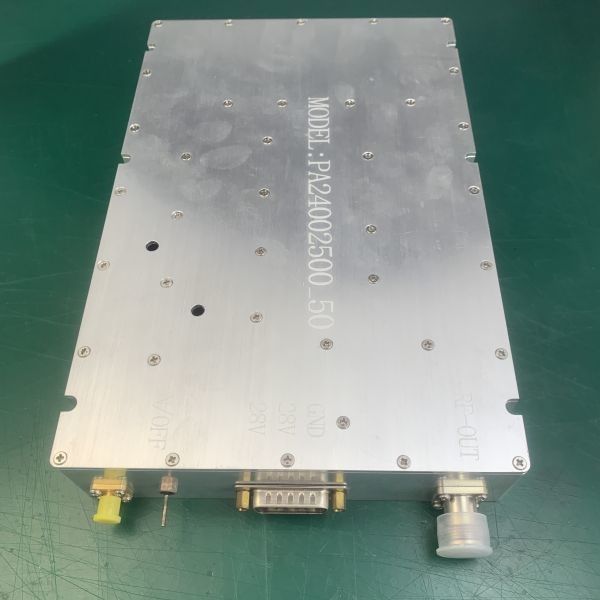

100W RF Power Amplifier 50dBm High Power for Drone Jammer 2400 2500MHz Wifi 2.4G Band
Product Description:
Solid-state microwave source, can provide 100W continuous wave power, can realize output power adjustment of 10W~100W, high frequency stability, power amplifier built-in high-power circulator and load , suitable for loads of various standing wave ratios; has a complete protection circuit to ensure the reliable operation of the power source.
Features:
- Product Name: High Power Radio Amplifier, Radio Transmitter Power Amplifier
- Frequency Range: 2400MHz To 2500MHz
- Supply Current: 9A @28V
- Large size with good heat dissipation design, optional with heat dissipation teeth
Technical Parameters:
| Item |
Specification |
| Frequency Range |
2400-2500 MHz |
| Output Power |
50 dBm |
| Tx Gain |
50 ± 1 dB |
| Gain Flatness |
≤3.0 (dB) Peak To Peak Over Freq Band |
| Launch Power Input |
Min. 0 (dBm) |
| Input VSWR |
≤ 1.5:1 |
| DC Current |
9 A |
| Size(DxWxH) |
236x156x35mm |
| In/Out Commector |
SMA/N Female |
| Protection |
Output Protected Against High VSWR
Stop working when the temperature exceeds 62 ° C
|
| Operation Temp. |
-20 ~ +65 (°C) |
| I/O Map
Enable Control(ON/OFF)
|
(D-Sub 3Pin M)
1.2. :28V
3. :GND
ON: Defaults On
OFF: Low level (grounded)
|
| Supply Voltage |
28V |
| Work Mode |
CW Signal |
Applications:
RF Power Amplifier – Model Number: PA2400T2500M 100W-28V
This product is mainly suitable for drone jammer. The amplifier operates in the frequency range of 2400-2500MHz, which is the Wi-Fi 2.4G band.
The power output of 50dBm corresponds to a power level of 100 watts, which is quite high and can be used for long-range communication or jamming.
Customization:
Custom Radio Frequency Power Amplifier
Our custom radio frequency power amplifier (Model Number: PA2400T2500M 100W-28V) is designed for 2400MHz to 2500MHz frequency range, 50dB gain, 50Ω input/output impedance, and SMA/N connector type. It is manufactured in China, with minimum order quantity of 2. The price is negotiable.
Support and Services:
We provide technical support and services related to our RF Power Amplifier product. Our experienced team of technical experts is available to help you with any questions or issues you may have. We offer comprehensive support, from initial installation and setup to troubleshooting and maintenance. Our team is available to answer your questions and provide assistance by phone, email, or online chat.
We also provide periodic maintenance and updates for our RF Power Amplifier product. Our experts can help you identify any potential problems or areas of improvement and recommend solutions to keep your system running smoothly. We also offer warranty and repair services to ensure your product is functioning properly.
Our goal is to provide excellent technical support and services for our customers. If you have any questions or need assistance with your RF Power Amplifier product, please don’t hesitate to contact us.
