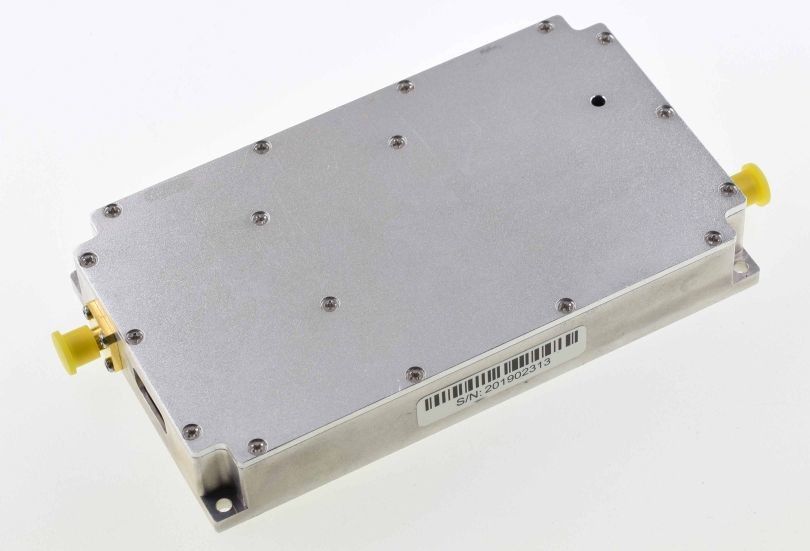

10W Solid State Power Amplifier Module 900MHz 1600MHz Microwave Source
  • 10W Solid State Power Amplifier Module 900MHz 1600MHz Microwave Source

10W Solid State Power Amplifier Module 900MHz 1600MHz Microwave Source

Place of Origin SHENZHEN,CHINA
Brand Name MXT
Model Number PA900T1600M 10W-12V
Product Details
Case Material:
Aluminium
Color:
Silver
Frequency Rang(MHz):
Customized
Power:
10W
Work Mode:
CW Signal
Size:
130x75x20 (mm)
High Light:

10W Solid State Power Amplifier

,

Solid State Power Amplifier 900MHz

,

1600MHz Solid State Microwave Amplifier

Payment & Shipping Terms
Minimum Order Quantity
2
Price
Negotiable
Delivery Time
30 Work Days
Payment Terms
L/C, T/T
Product Description

10W Solid State Power Amplifier Module 900MHz 1600MHz Microwave Source

Product Description:

solid-state microwave source, can provide 10W continuous wave power, can realize output power adjustment of 0.1W~10W, the internal use of phase-locked loop technology, high frequency stability, power amplifier built-in high-power circulator and load , suitable for loads of various standing wave ratios; has a complete protection circuit to ensure the reliable operation of the power source.



Features:

  • Product Name: High Power Radio Amplifier, Transmitter Power Amplifier, Radio Transmitter Power Amplifier
  • Frequency Range: 900MHz To 1600MHz
  • Supply Current: 5.5A

Technical Parameters:

Item Specification
Frequency Range 900-1600 MHz
Output Power 40 dBm
Tx Gain 42 ± 1 dB
Gain Flatness ≤3.0 (dB) Peak To Peak Over Freq Band
Input VSWR ≤ 1.8:1
DC Current 5.5 A
Size(DxWxH) 130x75x20 mm
In/Out Commector SMA/N Female
Protection Output Protected Against High VSWR
Operation Temp. -20 ~ +65 (°C)
I/O Map

Socket 5Pin 2.54mm
Pin 1,2: 12V
Pin 3: GND

Pin 4:ON/OFF (ON enable level: 1.5V)

Supply Voltage 12V
Work Mode CW Signal




Applications:

RF Power Amplifier – Model Number: PA900T1600M 10W-12V

This product is mainly suitable for plasma excited MPT engine microwave ignition, solid-state microwave oven, thermal medical treatment, industrial heating, microwave lighting, microwave thawing, etc.



Customization:

Custom Radio Frequency Power Amplifier

Our custom radio frequency power amplifier (Model Number: PA900T1600M 10W-12V) is designed for 900MHz to 1600MHz frequency range, 42dB gain, 50Ω input/output impedance, and SMA/N connector type. It is manufactured in China, with minimum order quantity of 2. The price is negotiable.
