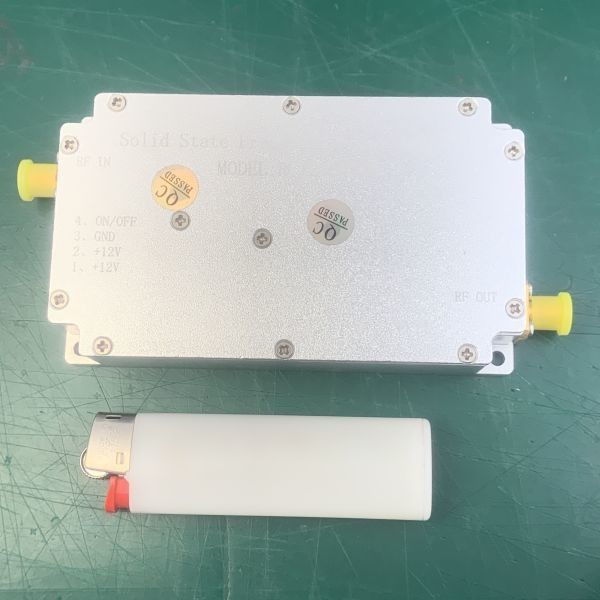

DC 12V 10W Solid State High Power Amplifier With SMA Connector
  • DC 12V 10W Solid State High Power Amplifier With SMA Connector
  • DC 12V 10W Solid State High Power Amplifier With SMA Connector

DC 12V 10W Solid State High Power Amplifier With SMA Connector

Place of Origin SHENZHEN,CHINA
Brand Name MXT
Model Number PA1550T1650M 10W-12V
Product Details
Case Material:
Frequency Rang(MHz):
Work Mode:
CW Signal
100x58x20 (mm)
High Light:

12V Solid State High Power Amplifier


10W Solid State High Power Amplifier


SMA Connector Solid State HF Amplifier

Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
30 Work Days
Payment Terms
L/C, T/T
Supply Ability
500Sets 30 Days
Product Description

40dBm Solid RF Power Module 10w GPS Band 1550MHz 1650MHz SMA Conncetor DC 12V Power Amplifier

Product Description:

solid-state microwave source, can provide 10W continuous wave power, can realize output power adjustment of 0.1W~10W, high frequency stability, power amplifier built-in high-power circulator and load , suitable for loads of various standing wave ratios; has a complete protection circuit to ensure the reliable operation of the power source.



  • Product Name: High Power Radio Amplifier, Transmitter Power Amplifier, Radio Transmitter Power Amplifier
  • Frequency Range: 1550MHz To1650MHz
  • Supply Current: 3A
  • Compact size design

Technical Parameters:

Item Specification
Frequency Range 1550-1650 MHz
Output Power 40 dBm
Tx Gain 42 ± 1 dB
Gain Flatness ≤3.0 (dB) Peak To Peak Over Freq Band
Input VSWR ≤ 1.8:1
DC Current 3 A
Size(DxWxH) 100x58x20 mm
In/Out Commector SMA/N Female
Protection Output Protected Against High VSWR
Operation Temp. -20 ~ +65 (°C)
I/O Map

Socket 5Pin 2.54mm
Pin 1,2: 12V
Pin 3: GND

Pin 4: ON/OFF (Turn ON enable level: 3.3V;Turn Off when low level or grounded)

Supply Voltage 12V
Work Mode CW Signal



RF Power Amplifier – Model Number: PA1550T1650M 10W-12V

This product is mainly suitable for plasma excited MPT engine microwave ignition, solid-state microwave oven, thermal medical treatment, industrial heating, microwave lighting, microwave thawing, etc.



Custom Radio Frequency Power Amplifier

Our custom radio frequency power amplifier (Model Number: PA1550T1650M 10W-12V) is designed for 1550MHz to 1650MHz frequency range, 42dB gain, 50Ω input/output impedance, and SMA/N connector type. It is manufactured in China, with minimum order quantity of 2. The price is negotiable.

Support and Services:

We provide technical support and services related to our RF Power Amplifier product. Our experienced team of technical experts is available to help you with any questions or issues you may have. We offer comprehensive support, from initial installation and setup to troubleshooting and maintenance. Our team is available to answer your questions and provide assistance by phone, email, or online chat.

We also provide periodic maintenance and updates for our RF Power Amplifier product. Our experts can help you identify any potential problems or areas of improvement and recommend solutions to keep your system running smoothly. We also offer warranty and repair services to ensure your product is functioning properly.

Our goal is to provide excellent technical support and services for our customers. If you have any questions or need assistance with your RF Power Amplifier product, please don’t hesitate to contact us.
