Broadband Power Amplifier
>
|
| Place of Origin | China |
| Brand Name | MXT |
| Model Number | TDD300T400M 10W-28V |

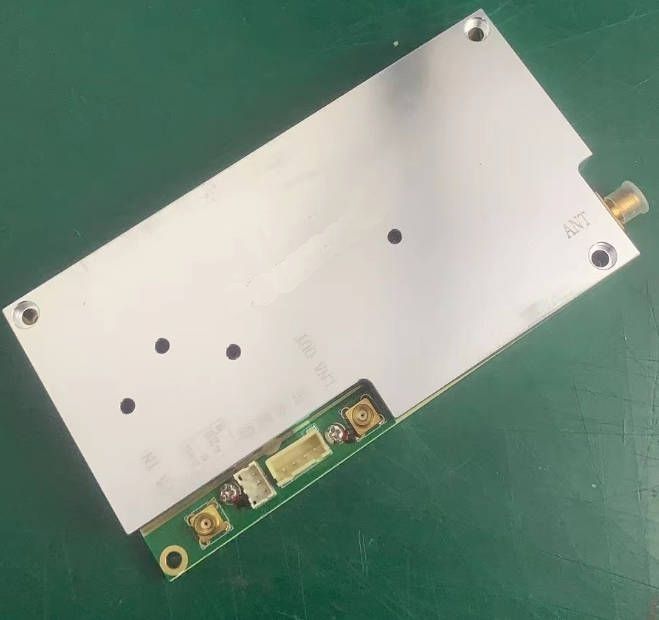

46dB Gain Broadband Amplification System from 300MHz To 400MHz Frequency Range
Our Broadband Power Amplifier System is a powerful and reliable solution for enhancing wireless systems performance. This state-of-the-art system is designed for a wide range of applications and provides an output power of up to 40dBm with a voltage supply of 28V. Weighing only 500g, the Broadband Power Enhancer features a connector type of SMA, and is ideal for use in environments with temperatures ranging from -40 to +60℃. Our Broadband Power Amplifier System is a must-have for any wireless system, providing superior performance and reliability.
| Item | Specification |
|---|---|
| Frequency Range | 300-400MHz |
| Output Power | 40dBm |
| Tx Gain | 46 ± 1 (dB) |
| Gain Flatness | ≤3.0 (dB) Peak To Peak Over Freq Band |
| Input VSWR | ≤ 1.8:1 |
| DC Current | 3.5(A) |
| Size(DxWxH) | 125x65x18 (mm) |
| In/Out Commector | MCX/SMA Female |
| Protection | Output Protected Against High VSWR |
| Operation Temp. | -20 ~ +60 (°C) |
| I/O Map |
Socket 4Pin 2.54mm
Pin 1,2:GND Pin 3,4:28V |
| Supply Voltage | 28V |
| Work Mode | CW Signal |
MXT Broadband Power Amplification System is a powerful, wideband power amplifier system designed for applications ranging from 300MHz to 400MHz. Its SMA connector provides a secure connection for reliable operation, and the output power of 40dBm and 20dB gain makes this a highly efficient system. With an operating temperature range of -40 to +60℃, this system is designed to withstand even the most extreme conditions. This system is ideal for applications that require a reliable and powerful signal amplification solution. It is suitable for a variety of different industries, including communication, aerospace, medical, and automotive, among others. With its high performance, wide frequency range, and robust design, the MXT Broadband Power Amplification System is the perfect solution for any power amplification needs.
MXT offers an extensive range of high-performance Broadband Power Amplifier Systems, perfect for any wideband power boosting application.
MXT's Broadband Power Amplifier Systems are designed to amplify signals within a wide frequency range, providing a high gain and a wide dynamic range. They are suitable for a variety of applications, including communication systems, radar systems, navigation systems, and more. With superior performance and reliability, our Broadband Power Amplifier Systems are the perfect solution for all your wideband power boosting needs.
We provide comprehensive technical support and service for all our Broadband Power Amplifiers. Our team of experienced engineers have in-depth knowledge of the products and can provide the following services:
We offer our technical support and services at competitive prices and are happy to answer any questions you may have about our products. Please don’t hesitate to contact us if you need assistance.
The Broadband Power Amplifier is packaged in a sturdy box and is shipped with appropriate padding and cushioning to ensure that the product arrives in its original condition.
Shipping costs will vary based on the destination and method chosen. We offer a variety of shipping options, from standard ground shipping to expedited shipping.
We also provide international shipping for customers outside the United States. Please contact our customer service department for more information.
