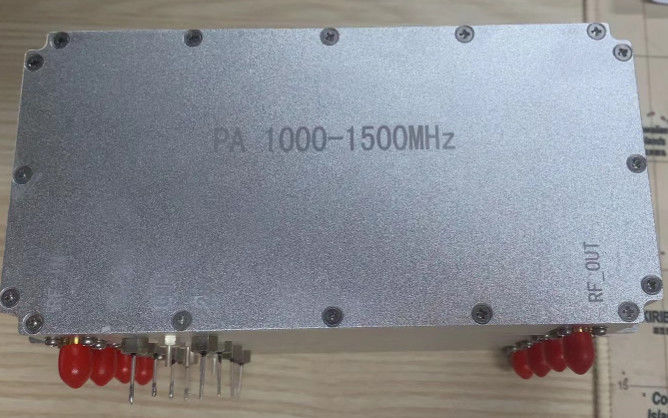

1000MHz To 1500MHz 10W Broadband Power Amplifier With -40 To 65C Operating Temperature
  • 1000MHz To 1500MHz 10W Broadband Power Amplifier With -40 To 65C Operating Temperature
  • 1000MHz To 1500MHz 10W Broadband Power Amplifier With -40 To 65C Operating Temperature

1000MHz To 1500MHz 10W Broadband Power Amplifier With -40 To 65C Operating Temperature

Place of Origin China
Brand Name MXT
Model Number PA1000T1500M 10W-28V
Product Details
Gain:
20dB
Connector:
SMA
Output Power:
40dBm
Operating Temperature:
-40 To +65℃
Frequency Range:
1000MHz To 1500MHz
Gain Flatness:
±1.0dB
Weight:
900g
Voltage Supply:
28V
High Light:

10W Broadband Power Amplifier

,

SMA Wideband Power Amplifier

,

1500MHz Wideband Power Amplifier

Payment & Shipping Terms
Minimum Order Quantity
2
Price
Negotiable
Delivery Time
30 Work Days
Payment Terms
T/T
Supply Ability
500Sets 30 Days
Product Description

1000MHz To 1500MHz 10W Broadband Power Amplifier with -40 To 65C Operating Temperature

Product Description:

The 1000MHz To 1500MHz 10W  Wideband Power Amplification System is a high-performance solution designed for superior wideband power amplification. It is capable of delivering up to 20dB of gain and 20dBm of output power while maintaining a wide operating temperature range of -40 to 65℃. This system is lightweight and features a SMA connector for easy integration and installation. It is the perfect choice for reliable, high-performance wideband power amplification.



Technical Parameters:

Item Specification
Frequency Range 1000-1500 MHz(Customization)
Output Power 40 dBm
Tx Gain 21 ± 1 dB
Gain Flatness ≤3.0 (dB) Peak To Peak Over Freq Band
Input VSWR ≤ 1.8:1
DC Current 2.5 A
Size(DxWxH) 260x70x28(mm)
In/Out Commector SMA Female
Protection Output Protected Against High VSWR
Operation Temp. -20 ~ +65 (°C)
I/O Map Power: Through-capacitor 28V
ON/OFF: Through-capacitor Amplifier start-up control 3.3V high active
Ground post: GND
Supply Voltage 28V
Work Mode COFDM Signal




Applications:

MXT Broadband Power Amplifier:

The MXT Broadband Power Amplifier is an ideal solution for applications that require high performance wideband RF amplification. This amplifier has a frequency range of 1000MHz to 1500MHz, a voltage supply of 28V, and a weight of 900g. It also has a Gain Flatness of ±1.0dB and an Output Power of 20dBm.

This amplifier is perfect for applications such as signal enhancement systems where a wideband amplifier is required. The MXT Broadband Power Amplifier is designed to provide the highest level of performance with excellent linearity, flat gain, and low noise figure. It is an ideal solution for high frequency applications such as broadcasting, wireless communications, and military applications.

The MXT Broadband Power Amplifier is the perfect choice for a wide range of applications. Its compact design and superior performance make it an ideal choice for any application that requires high frequency amplification.



Customization:

MXT Wideband Power Amplification System

MXT wideband power amplification system is a powerful broadband power enhancer, designed to amplify broadband signals with an output power of 20dBm and a gain flatness of ±1.0dB. With a voltage supply of 28V, it can provide a gain of 20dB and comes with a SMA connector.

The MXT wideband power amplification system is the perfect choice to amplify broadband signals and is designed to be reliable and durable. Place of origin is China.



Support and Services:

Broadband Power Amplifier Technical Support and Service

Our technical support team is available to help you with any questions or issues you may have with our Broadband Power Amplifier product. Our team can provide assistance with installation, troubleshooting, and general product maintenance.

We offer a comprehensive suite of services including product training, system integration, and extended warranty options. Our team is dedicated to providing you with the best service and support possible.

If you have any questions or concerns, please don't hesitate to contact us. We look forward to helping you get the most out of your Broadband Power Amplifier.



FAQ:

Broadband Power Amplifier Related Questions & Answers

Q1: What is Broadband Power Amplifier?
A1: Broadband Power Amplifier is a product manufactured by MXT, a brand from China. It is designed to amplify a wide range of frequencies.

Q2: What are the features of MXT Broadband Power Amplifier?
A2: MXT Broadband Power Amplifier has low distortion, high linearity, and high efficiency.

Q3: What kind of connections does MXT Broadband Power Amplifier support?
A3: MXT Broadband Power Amplifier supports single-ended input and output, and balanced input and output.

Q4: What is the power range of MXT Broadband Power Amplifier?
A4: MXT Broadband Power Amplifier can provide power from 0.5 W to 100 W.

Q5: What kind of safety features does MXT Broadband Power Amplifier have?
A5: MXT Broadband Power Amplifier has multiple safety features, such as over-current, over-temperature, and short-circuit protection.
