5725MHz-6GHz RF Power Amplifier CW Signal For Wireless Communication
  • 5725MHz-6GHz RF Power Amplifier CW Signal For Wireless Communication
  • 5725MHz-6GHz RF Power Amplifier CW Signal For Wireless Communication
  • 5725MHz-6GHz RF Power Amplifier CW Signal For Wireless Communication

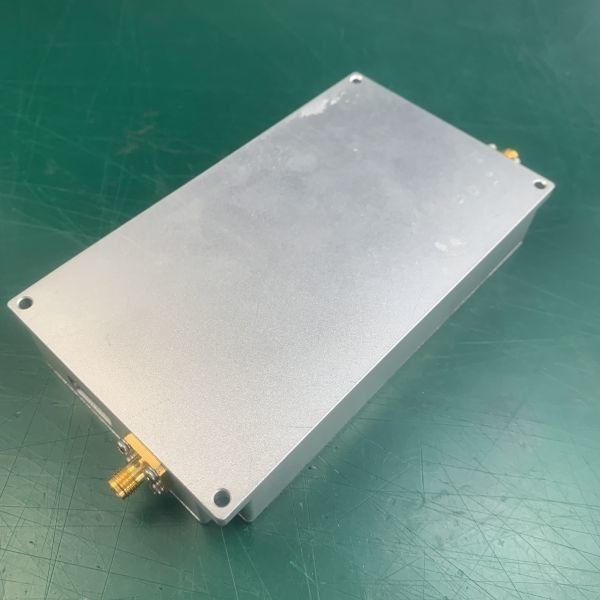

5725MHz-6GHz RF Power Amplifier CW Signal For Wireless Communication

Place of Origin China
Brand Name MXT
Model Number PA5725T5850M 10W-12V
Product Details
Gain:
44dB
Work Mode:
CW Signal
Output Power:
40dBm
Power Added Efficiency:
20%
Connector Type:
SMA/N/BNC
Frequency Range:
5725MHz To 5850MHz
High Light:

5725MHz RF Power Amplifier

,

6GHz RF Power Amplifier

,

CW Signal High Power RF Amplifier

Payment & Shipping Terms
Minimum Order Quantity
2
Price
Negotiable
Delivery Time
30 Work Days
Payment Terms
L/C, T/T
Supply Ability
500Sets 30 Days
Product Description

High Power Radio Amplifier 5725MHz-6GHz P.A.E. 20%

Product Description:

Radio Frequency Power Amplifier (RFPA)

Our Radio Frequency Power Amplifier (RFPA) is designed to provide maximum power output capabilities with high dynamic range for radio transmitters and wireless communication systems. It offers a high power added efficiency of up to 20%. Its input/output impedance is 50Ω and it is available in both surface mount and through hole packages. Its operating temperature range is -40°C to +65°C.

Our RFPA is a reliable and cost-effective RF power solution ideal for a wide range of radio transmitter power amplifier and wireless communication applications. It is designed to provide highly efficient performance with superior linearity and gain in a wide range of frequency bands. Our RFPA is capable of providing high quality output signals with minimal distortion, making it the ideal choice for radio transmitter power amplifier, wireless amplifier, and other wireless communication applications.



Features:

  • Product Name: RF Power Amplifier
  • Power Added Efficiency: 20%
  • Output Power: 40dBm
  • Input/Output Impedance: 50Ω
  • Radio Transmitter Power Amplifier: High Power Radio Amplifier, Transmitter Power Amplifier


Technical Parameters:

Item Specification
Frequency Range 5725-5850MHz
Output Power 40dBm
Tx Gain 44 ± 1 (dB)
Gain Flatness ≤3.0 (dB) Peak To Peak Over Freq Band
Input VSWR ≤ 1.8:1
DC Current 4(A)
Size(DxWxH) 130x75x20 (mm)
In/Out Commector MCX/SMA Female
Protection Output Protected Against High VSWR
Operation Temp. -20 ~ +50 (°C)
I/O Map
Socket 4Pin 2.54mm
Pin 1,2:GND
Pin 3,4:28V
Supply Voltage 12V
Work Mode CW Signal




Applications:

RF Power Amplifier – Model Number: PA5725T5850M 10W-12V

The RF Power Amplifier is the ideal choice for radio jammer applications. It is made of high-grade materials and has a Place of Origin of China. This Radio Transmitter Power Amplifier is designed to work with a Minimum Order Quantity of 2 and supports a wide range of frequencies from 5GHz to 6GHz. The Supply Voltage is 12V and it is capable of amplifying CW Signal. It also features an Input/Output Impedance of 50Ω. In addition, the package type is available in both Surface Mount or Through Hole for your convenience. The price is negotiable.



Customization:

Custom Radio Frequency Power Amplifier

Our custom radio frequency power amplifier (Model Number: PA5725T5850M 10W-12V) is designed for 5GHz to 6GHz frequency range, 44dB gain,  50Ω input/output impedance, and SMA/N/BNC connector type. It is manufactured in China, with minimum order quantity of 2. The price is negotiable.



Support and Services:

RF Power Amplifier Technical Support and Service

We provide technical support and service for our RF Power Amplifier products to ensure long-lasting operation and performance. Our team of experts is available to answer any questions regarding installation, operation, maintenance, and troubleshooting. We also provide on-site visits if needed.

Our technicians are knowledgeable and certified in a wide range of RF Power Amplifier models. We have extensive experience with the latest technologies and can provide you with the best advice for your needs. Our customer support staff is available 24 hours a day, 7 days a week to answer any inquiries.

We stand behind our RF Power Amplifier products and services and guarantee a full replacement or refund in the unlikely event of failure due to manufacturing defects. We also offer extended warranties and service contracts to provide you with the peace of mind that your product is covered.
