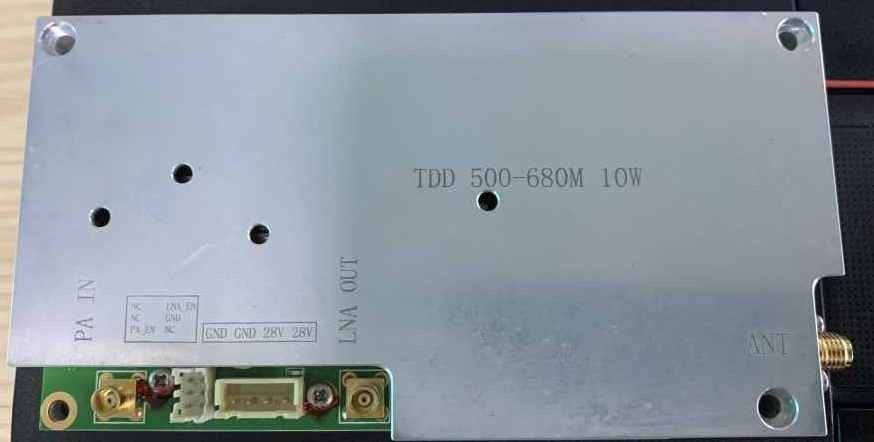

RF Power Amplifier 37dBm 28V 50Ω
Product Description:
RF Power Amplifier - Transmitter Power Amplifier for Radio Transmissions
This Radio Frequency Power Amplifier (RFPA) is designed to amplify a signal from -10dBm to 0dBm, with the supply current 1500mA . It is suitable for COFDM signal transmission and has excellent noise performance of 3.0 dB. Its Power Added Efficiency (PAE) is between 10% to 20%, allowing for highly efficient power transmission.
Features:
- Product Name: RF Power Amplifier
- Package Type: Surface Mount/Through Hole
- Group Delay Variation: 2us
- Noise Figure: 3.0dB
- Supply Voltage: 28V
- Wireless Power Amplifier
- Radio Frequency Power Amplifier
Technical Parameters:
| Item |
Specification |
| Frequency Range |
570-598MHz |
| Output Power |
37dBm |
| Tx Gain |
45 ± 1 (dB) |
| Rx Gain |
10 ± 1 (dB) |
| Gain Flatness |
2.0 (dB) Peak To Peak Over Freq Band |
| Gain Stability |
± 1.5 (dB) Over Temp |
| In/Out VSWR |
Less Than 1.5:1 |
| DC Current |
1.5 (A) |
| Size(DxWxH) |
125x65x18(mm) |
| In/Out Commector |
MCX/SMA |
| Time Delay |
≤2(us) |
| Operation Temp. |
-20 ~ +65 (°C) |
| I/O Map |
Power Supply Interface Socket 1x4Pin 2.54mm
Pin 1,2:GND
Pin 3,4:28V
Control Interface Socket 2x3Pin 2.0mm
Pin 1,3,6:NC
Pin 2:LNA_EN
Pin 4:GND
Pin 5:PA_EN
|
| Supply Voltage |
28V |
| Work Mode |
TDD OFDM Signal |
Applications:
The TDD570T598M 5W-28V Radio Frequency Power Amplifier is an excellent solution for enhancing signal strength in data transmission systems that operate using Time Division Duplexing (TDD) mode. This power amplifier can be used in a variety of applications, such as wireless communication systems, point-to-point microwave links, and more. For example, in a wireless communication system, the TDD570T598M 5W-28V power amplifier can be used to boost the signal strength of data being transmitted between two devices. This can help to improve the reliability and range of the communication system, especially in areas with weak signal coverage. With its high power output and compact size, the TDD570T598M 5W-28V power amplifier is an ideal choice for many RF applications.
Customization:
Customized RF Power Amplifier Service
We provide customized RF Power Amplifier Service according to your requirements. Our Model Number is TDD570T598M 5W-28V. which is made in China. The Minimum Order Quantity is 2. The price is negotiable. This High Power Radio Amplifier works in COFDM Signal mode and has a Supply Current of 1.5A, and a Supply Voltage of 28V. Our Transmitter Power Amplifier is ideal for High Power Radio Amplifier applications with its high power output, low noise and high linearity performance.
Support and Services:
RF Power Amplifier Technical Support and Services
- Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
- Provide troubleshooting and repair services.
- Provide replacement parts and components.
- Answer customer inquiries and provide product information.
- Provide technical training for customers.
- Provide warranty service.
