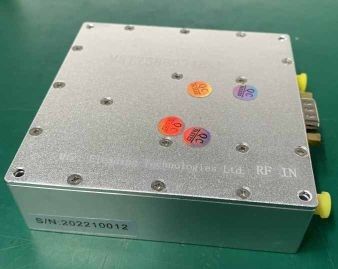

32W Telecom RF Power Amplifier Module 2110MHz 2170MHz UMTS CH 1,CH 10,LTE 1,LTE 10,LTE 65,LTE 66,2100+ Downlink
Product Description:
The RF Power Amplifier offers high performance in the wireless power amplifier and radio frequency power amplifier applications. It is designed to provide a high power output and excellent power added efficiency (PAE) from 20% to 50%. This power amplifier delivers a reliable output power of 45dBm.
Features:
- Frequency Range: 2110MHz To 2170MHz
- Gain: 40dB
- Input Power: 5dBm
- Operating Temperature: -20°C To +60°C
Technical Parameters:
| Item |
Specification |
| Frequency Range |
2110-2170MHz |
| Output Power |
45dBm |
| Tx Gain |
40 ± 1 (dB) |
| Gain Flatness |
2.0 (dB) Peak To Peak Over Freq Band |
| Gain Stability |
± 1.5 (dB) Over Temp |
| In/Out VSWR |
Less Than 1.5:1 |
| DC Current |
3 (A) |
| Size(DxWxH) |
100x100x30 (mm) |
| In/Out Commector |
SMA Female |
| Protection |
Output Protected Against High VSWR |
| Operation Temp. |
-20 ~ +60 (°C) |
| I/O Map(D-Sub 9Pin M) |
1.N.C.
2.Forward Power Detecion Min 25dBm - Max 45dBm,Vout=3.3-(45-Pout)*0.1
3.N.C.
4.Reflect Power Detecion Min 25dBm - Max 45dBm Vout=3.3-(45-Reflected)*0.1
5.N.C.
6.7.Vcc(+28V)
8.9.GND
|
| Supply Voltage |
28V |
| Work Mode |
CW Signal |
Applications:
The PA2110T2170M_45-28V Radio Frequency Power Amplifier is the perfect choice for a variety of applications that require radio transmitter power amplification.
Customization:
Customized RF Power Amplifier Service
We provide customized RF Power Amplifier Service according to your requirements. Our Model Number is PA2110T2170M_45-28V. which is made in China. The Minimum Order Quantity is 2. The price is negotiable. This High Power Radio Amplifier works in CW Signal mode and has a Supply Current of 3A, and a Supply Voltage of 28V. Our Transmitter Power Amplifier is ideal for High Power Radio Amplifier applications with its high power output, low noise and high linearity performance.
Support and Services:
RF Power Amplifier Technical Support & Services
We offer technical support and services for our RF Power Amplifier products to ensure that they are functioning properly and providing the best possible performance.
Installation & Setup
We are available to provide assistance with the installation and setup of your RF Power Amplifier. Our team of experienced engineers can guide you through the process and answer any questions you have.
Troubleshooting
If you are experiencing any issues with your RF Power Amplifier, our team of experts can help identify the source of the problem and provide you with solutions to resolve it quickly.
