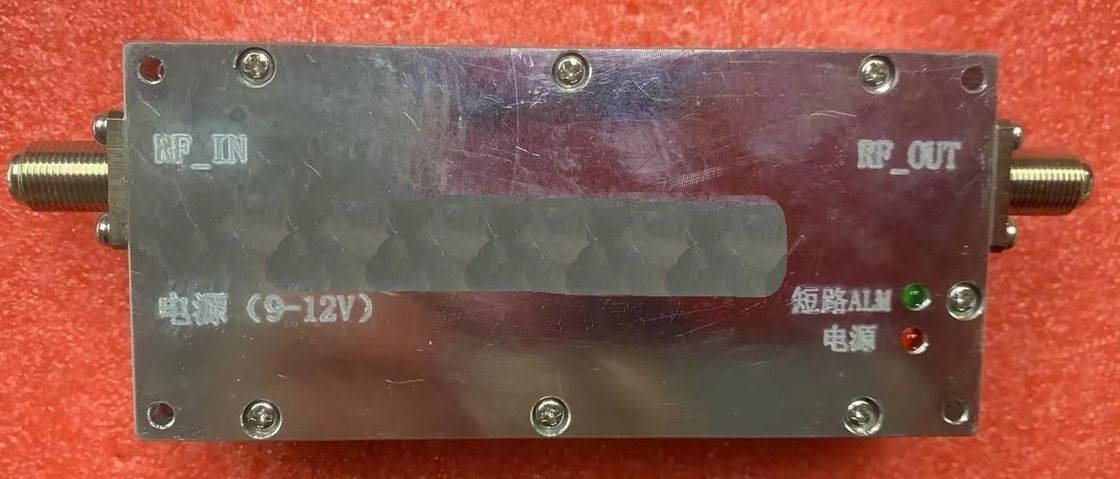

Aluminum Alloy GPS Signal Repeater Amplifier DC12V Dual Band
  • Aluminum Alloy GPS Signal Repeater Amplifier DC12V Dual Band

Aluminum Alloy GPS Signal Repeater Amplifier DC12V Dual Band

Place of Origin SHENZHEN,CHINA
Brand Name MXT
Model Number GPS-1
Product Details
Case Material:
Aluminium
Color:
Black
Frequency Rang(MHz):
Customized
Channel:
1
Work Mode:
LNA
Connector:
SMA-Female
Frequency Range:
1575.42MHz
Gain:
20dB
Humidity:
≤95%
Impedance:
50Ω
Material:
Aluminum Alloy
Noise Figure:
3dB
Power Consumption:
≤3W
Power Supply:
DC12V
Product Name:
GPS Signal Repeater
Size:
90mm×90mm×25mm
VSWR:
≤2.0
Weight:
200g
Working Temperature:
-30℃~+75℃
High Light:

Aluminum Alloy GPS Signal Repeater

,

GPS Signal Repeater 12V

,

Dual Band GPS Signal Amplifier

Payment & Shipping Terms
Minimum Order Quantity
2
Price
Negotiable
Delivery Time
30 Work Days
Payment Terms
L/C, T/T
Supply Ability
500Sets 30 Days
Product Description

Gps/Beidou Dual-Band Signal Transponder L1 Signal Enhancement Gps1575m Beidou1561mhz) Lna



Description



GPS/Beidou(BD) Dual-Band Signal Transponder is a GPS/BD signal forwarding system with low cost and high gain, which is specially designed and developed for users of different industries in the weak indoor signal and small coverage area when GPS/BD receivers are produced, tested or used. It can be quickly locked GPS/BD satellite signal by outdoor donor antenna, linearly amplifies the satellite signal and then retransmits it via the indoor coverage antenna to the weak/blind coverage area. So that the GPS/BD receivers within the signal coverage can receive the GPS/BD signal, realizing the function of real-time positioning timing signal enhancement.





Features:



1. Convenient installation.
2. There is no limit to the number of indoor GPS/Beidou receivers.
3. GPS/BD signal coverage area is large, up to more than 200 square meters.



Specification:



Frequency Range 1568±10MHz(GPS1575M / Beidou1561M)
Maximum Gain 55±2dB
Noise Figure ≤2.0dB
Signal Coverage Radius 8-10m
Impedance 50Ω
VSWR ≤1.6
Connector Type SMA-Female
Power Supply DC 12V
Dimensions 170x90x40mm
LED Indicator Power Supply
Operating Temperature -25 ~ +65 °C
Application Indoor use Only
Mounting Wall Mounting



Aapplication: Need to achieve indoor coverage of GPS/BD signals in various occasions: Aviation manufacturing, Aviation maintenance, research laboratories, underground parking, GPS/BD stores, indoor demonstration halls etc…






FAQ


Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.

Q3. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, and frequencies.

Q4. Delivery & Shipment Date:
5-30 days

Q5. Customized Frequency:
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
