2400 2500MHz UAV Drone Signal Jammer 100W With Aluminium Case
  • 2400 2500MHz UAV Drone Signal Jammer 100W With Aluminium Case

2400 2500MHz UAV Drone Signal Jammer 100W With Aluminium Case

Place of Origin SHENZHEN,CHINA
Brand Name MXT
Model Number PA2400T2500M 100W-28V
Product Details
Case Material:
Aluminium
Color:
Silver
Frequency Rang(MHz):
Customized
Power:
100W
Auxiliary Heat Dissipation:
Heatsink
Work Mode:
CW Signal
High Light:

2400MHz Drone Signal Jammer

,

2500MHz Drone Signal Jammer

,

Aluminium UAV Signal Jammer

Payment & Shipping Terms
Minimum Order Quantity
10
Delivery Time
30 work days
Product Description

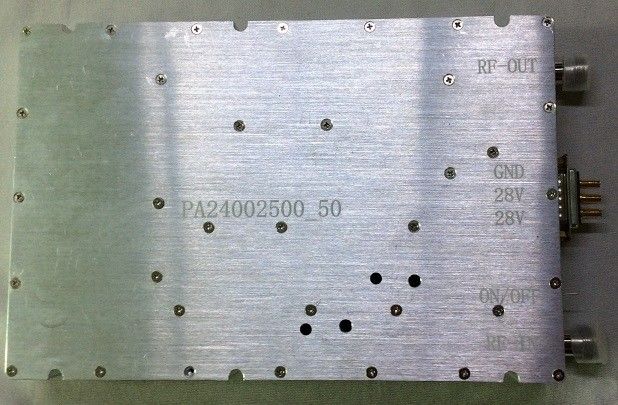

100W RF Power Amplifier for UAV Drone Jammer 2400 2500MHz





  Specification Remark
Operating Frequency 2400-2500MHz
Power > 50 dBm (CW)
Tx Gain 50 ± 1 (dB)
Gain Flatness ± 1.5 (dB)
In/Out VSWR Less Than 1.5:1
Launch Power Input Min. 0 (dBm)

Enable Control

(ON/OFF)

ON:  Defaults On

OFF: Low level (grounded)


DC Current 9 (A)
Size(DxWxH) 236x156x35 (mm)
In/Out Connector

Input:SMA Female

Output: N-Female


Protection

Protected Against High VSWR

Stop working when the temperature exceeds 62 ° C

Operation Temp. -20 ~ +60 (°C)
I/O Map(D-Sub 3Pin M)

1.2. :28V

3. :GND
